OEM ANSI A -tyyppinen ketjupyörä

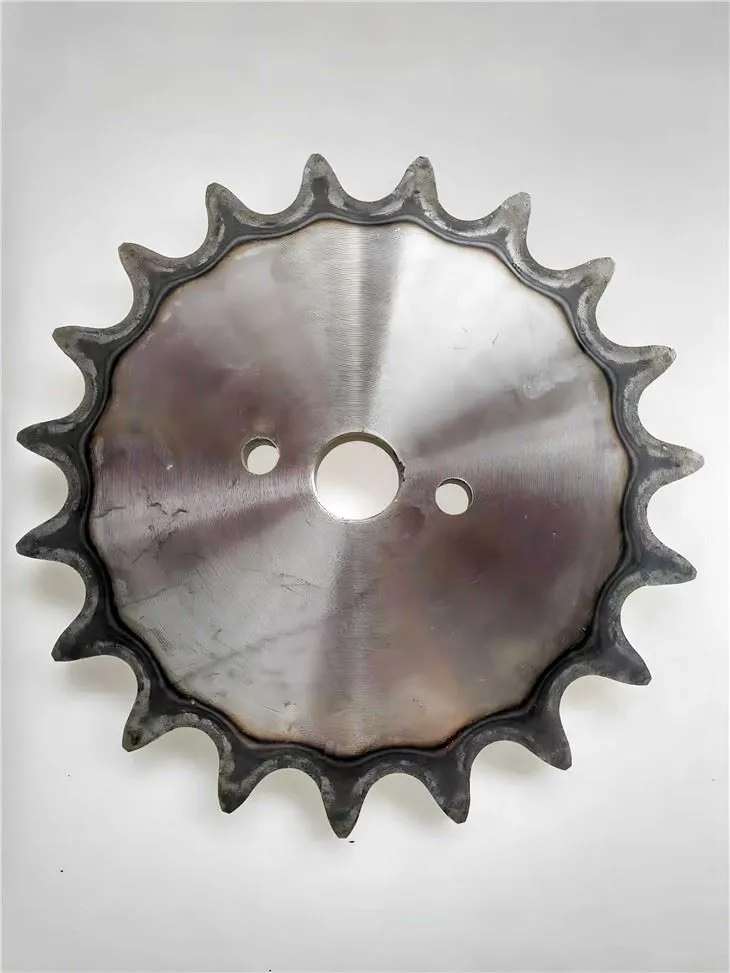

GZG OEM ANSI sprocket 100-19T which is sort of A type sprocket.The biggest difference between it and regular sprocket is the thickness. Regular thickness of ANSI 100-19T sprocket should be 17.58mm, but thickness of GZG OEM ANSI Sprocket 100-19T is 12mm. HRC could meet client's presuit after tooth quenching heat treatment. And two locking holes could help to output torque. We warmly welcome clients contact us and ask for more details about this OEM sprocket.

Lähetä kysely

Keskustele nyt

GZG OEM ANSI ketjupyörä 100-19Twhich is sort of A type sprocket.The biggest difference between it and regular sprocket is the thickness. Regular thickness of ANSI 100-19T sprocket should be 17.58mm, but thickness of GZG OEM ANSI Sprocket 100-19T is 12mm. HRC could meet client's presuit after tooth quenching heat treatment. And two locking holes could help to output torque.

Drawing of OEM ANSI A Type Sprocket 100-19T

Sprocket GZG 100-19T

Mitat viitteeksi

Hampaat	Pitch	Roller Φ	Hampaiden paksuus	Ulkokehän halkaisija	P.C.D	Poran halkaisija 1	Poran halkaisija 2	Kahden lukitusreiän välinen halkaisija	Paino (kg	Material
19	31.75	19.05	12	212	192.913	25.7	10.7	60	2.49	C45
